INNOTRAC - autonome driverless tractor - AGRODROIDE Model AD one

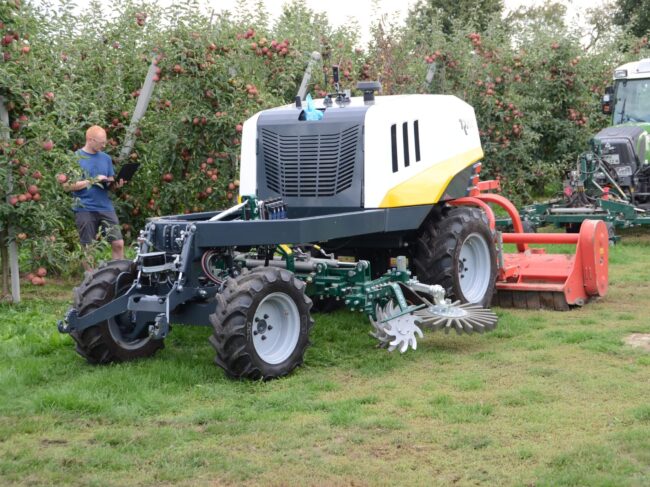

Autonomous operation & universal applicability : AGRODROIDE AD 1

Navigation is based on the use of LIDAR and a GNSS-secured RTK correction signal. Mission control and remote monitoring are carried out via mobile phone or tablet.

Avoidance or Replacement of a workplace

that is hazardous to health, especially during plant protection measures,
which is monotonous and requires maximum concentration for certain measures
it is not about reducing jobs but about solving the problems of non-existent human skilled-workers
which costs the company 20 – 30 T € /

The innovative Technology

AGRODROIDE AD 1 is an economical solution because the concept ensures profitability for farm sizes of 20 to 30 ha through labour cost savings, universality and the use of existing equipment technology.
the drive coupling can be used without restriction, the 75 hp HATZ diesel fulfils all current emission standards
AGRODROIDE AD 1 is a practice-orientated solution: the all-wheel drive (up to 10 km/h) ensures reliable operation under all agricultural working conditions.
the price of the AGRODROIDE AD 1 is lower than the purchase price of a standard tractor,
Navigation is based on the use of LIDAR and a GNSS-secured RTK correction signal.
Operation control and remote monitoring are carried out via mobile phone or tablet.

Technical data

Engine	HATZ 4 cyl 4H50TICD
Type	Diesel 55,4 kw , 75 hp (up to 120 hp)
Power output	1.967 ccm
Number of cylinders	4
Emission standard	stage 5
F a r m a t i o n	Stepless hydrostatic permanent all-wheel drive (0- 9 km/h)
Hydraulic Drive	hydrostatic drive continuous stepless speed drive
Axles	Hydraulic individual wheel drive
Steering	Axle pivot steering with demand-controlled single wheel brake in the rear axle
Service brake	Hydrostatic
Parking brake	Spring-loaded integrated multi-disc brake in the rear wheel drives
PTO shaft	Mechanical drive at the rear and between axles Drive 540 rpm (optional 1000 rpm)
Front PTO	Hydraulic drive 0-56 rpm at 210 bar adjustable

Attachment compartments	Front, center, rear in three-point linkage Semi-mounted hopper ob. Plant protection, sprayer

Working hydraulics 1	Gear pump max. 17.2 \|/min at 210 bar, electrohydraulic directional control valves
Working hydraulics 2	Gear pump 0-56 \|/min at 210 bar infinitely variable
Power lift 1 (front)	KAT 1 (optional KAT 2), lifting capacity 1200 kg
Power lift 2 (center)	KAT 1 (optional KAT 2), lifting capacity 1200 kg
Power lift 3 (rear)	KAT 1 (optional KAT 2), lifting capacity 1800 kg
Battery capacity	24V – 66 Ah

Fuel supply	100 l
Hydraulic system	45 1 – HVLP 46 Hydraulic oil
Operating temperatures	-15 °C to +40 °C

Front axle	260/70R 16 – AGRIMAX RT 765
Rear axle	320/70 R20 – AGRIMAX RT 765
Vehicle weight	1.650 kg
Gross vehicle weight	3.000 kg
Overall length Height	4.240 mm
Overall width	1.560 mm
