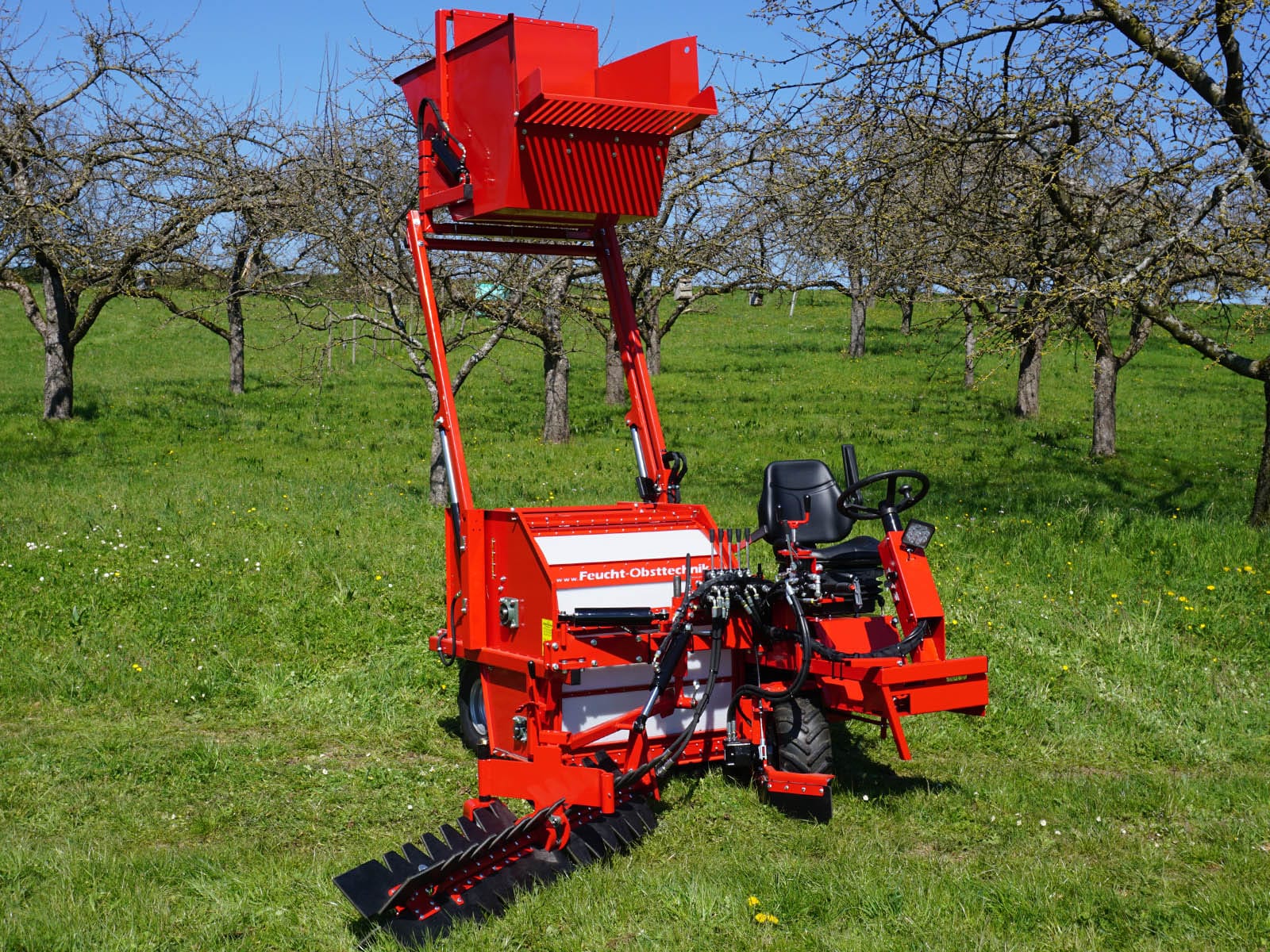

Harvester machine OB 80 R (Ride-on)
With these harvesting machine, a significant increase in productivity can be achieved in the short juice fruit harvesting season, while at the same time increasing profitability.
Fruit picking machine or fruit collecting machine OB 80 R (Ride-on)
The OB 80 R is a self-driving picking machine for individual farms, communes, contractors, agricultural machinery cooperatives, and associations.
A device with 18 PS and 80 cm work width (with additional plantation rotor correspondingly more). It is equipped with a 230 l bunker, the overloading height of which is 2.50 m. This device is available with all-wheel drive.
The fruit picking machine or fruit collecting machine consists of a side-oriented 18 PS 4-stroke motor. This drive, on the one side, a variable pump for the drive and, on the other side, the picking and cleaning roller using 2 V-belts. The machine is guided at the front by a support / steering wheel, which can be adjusted mechanically in height.
A particularly smooth-running, fully hydraulic steering system ensures maximum comfort during operation and enables fatigue-free harvesting. During operation, the fruits are thrown along the throwing hood by rubber lamellae of the picking roller and thus conveyed upwards. They then fly over the sieve grating into the bunker.
OB 80 R
The riding machine with 80 cm work width.
For individual farms, communes, contractors, agricultural machinery cooperatives and associations, we offer the self-driving fruit picking machine or fruit collecting machine OB 80 R. The OB 80 R has a high emptying and can be equipped with a number of accessories.
Benefits
- fruit intake possible even on slopes
- standard hydraulic differential lock
- very manoeuvrable and clearly arranged, due to short, compact design
- usable in orchards and plantations
- very good cleaning of the fruit from leaves and grass
- ergonomic sitting position due to inclined seat with 100% view of the fruit bunker and picking unit
- fully hydraulic mini steering with the lowest force need
- the steel parts are coated with plastic. Compared with conventional coatings, a much higher mechanical stability and UV resistance is achieved
- central adjustment of the harvesting cover for large and small fruit
- drive pedals for forward and backward drive with direction display
- professional neutral position for the hydraulic drive
- 100% filling of the fruit bunker
- emptying the bunker is possible at any height thanks to a 90° rotation of the bunker
- optimum grass length between 15 – 25 cm
- our machines achieve the highest picking rates (almost 100 %) without damaging the fruit, due to the gentlest picking of the rubber lips at minimum and maximum fruit density
- during the picking or collection process, the fruit is cleaned of leaves and grass and cleaning is achieved as if by hand
- can also be used in high soil moisture conditions due to its low weight and off-road tyres
- robust industrial motor
- the device is very easy-to-operate
Technical data
|
Work width:
|
80 cm |
|
Work width with rotor:
|
1 Rotor: 197 cm to 242 cm
2 rotors: 250 cm to 335 cm |
|
Motor:
|
18 PS Briggs & Stratton Vanguard 2 cylinder with electronic ignition
|
|
Drive:
|
Hydrostatic drive infinitely variable with differential lock
|
|
Drive:
|
Belt drive with spring compressor for drive and pick roller
|
|
Fruit bunker volumes:
|
250 l |
|
Unloading height:
|
245 cm |
|
Overload depth:
|
90 cm |
|
Length:
|
321 cm |
|
Width:
|
139 cm |
|
Height:
|
141 cm |
|
Height adjustment:
|
Front wheel with mechanical adjustment
|
|
Picking performance:
|
Up to 4 tonnes per hour depending on the amount of fruit deposits
|
|
Weight:
|
665 kg |
|
Fruit types:
|
Apples, pears, citrus fruits, walnuts, hazelnuts, chestnuts, etc.
|
|
Tyres:
|
Rear: 20 x 10.00-8, Front: 18 x 8.50-10
|
| Optional: |
Operational hour counter
|
|
Infinitely variable driven plantation rotor
|
|
|
Plantation rotor right
|
|
|
Plantation rotor left
|
|
|
Hydraulic height adjustment
|
|
|
Big bag holder
|
|
|
Work illumination
|
|
|
Rotating beacon
|
|
|
Nut kit for nuts (e.g. walnuts or hazelnuts)
|
|
|
Optionally also available with a large crate trolley (2 or 5 crates)
|
.
Advantages
- Compact desing and big streering angle for maximum manouverability
- Can be used in plants and on fruit meadows. Plant rotor with triangle wings (registered desing) and optimized ground adjustment are reaching pickup rates higher than 99%
- 100% seperation of fruit from grass and leaves
- Easy access to fuit baskets, stored 700 mm high
- Bracket for additional fruit baskets
- The plant rotor is able to rotate with infinitely variable speed
- Metal sheets are phosphate-treated and powder-coated. This gives much better mechanical and UV stability compared to conventional paints
- The plant rotor can be exactly adjusted to the ground by skid. The system follows every ground automatically
- Drive belts are spring extensioned are maintanance free. This system can be compared to hydraulic drives but it is much cheaper
- Front wheel steering is connected to the rhs handle. Gear linkage for reduced steering froces allows young people and woman to use the machine even on inclines
- Ergonomically arranged controls, safety stop for drive train.
- Our machines are reaching highest pickup rates (nearly 100%) without damaging any fruit. It dosn´t matter if there is more or less fruit available. Fruits will be cleaned during pickup process
- Complete fruit basket capacity is utilised
- Possible grass lenght for best pickup results: 5-25 cm
- Powerful engine and low noise level (only 30% engine load)
- Tractor drawbar for transport (not for hydrostatic transxle).
- Pneumatic control replacing bowden wires (option for hydrostatic transaxle only)
Accessories
- Operating hours counter
- Continuously driven plantation rotor with flow regulation
- Differential lock (only for hydrostatic transmission for up to 45 degrees)
- Pneumatic actuation instead of Bowden cables (for hydrostatic transmission)
Technical data
| Working width: | 800mm bis 1600mm |
|---|---|
| Engine: | 6,5 HP, optional 11 HP Honda OHV gasoline single cylinder engine electrinic ignition |
| Drive train: | 5 forward speeds one reverse speed, mechanical differential or hydrostatic transaxle |
| Transmission: | belt driving pickup system, automatic belt extensioners |
| Incline capability | unrestricted |
| Pickup adjustment: | height adjustment with fixable spindle at front wheel |
| Fruit basket volume:: | 2 x 35 ltr. |
| Pickup capacity: | 2,5 or 4 tons/hour |
| Length: | 2250 mm/ 2930 mm with tractor drawbar for |
| Transport: | Width: 1520 mm Height: 980 mm |
| Weight: | 312 kg |
