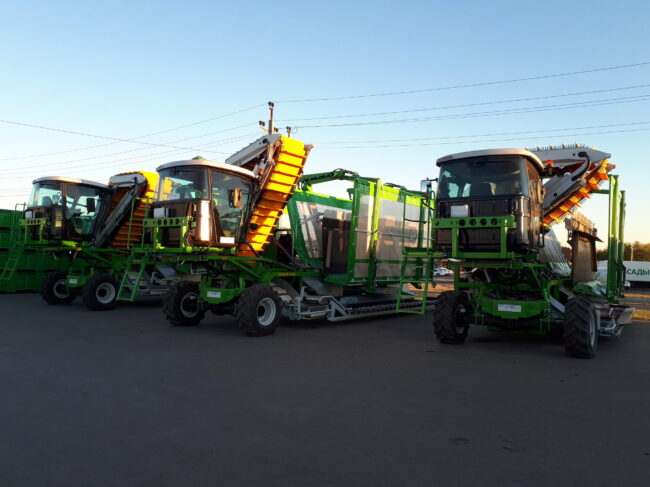

OE4.4 SHAKE & CATCH FRUIT-HARVESTER

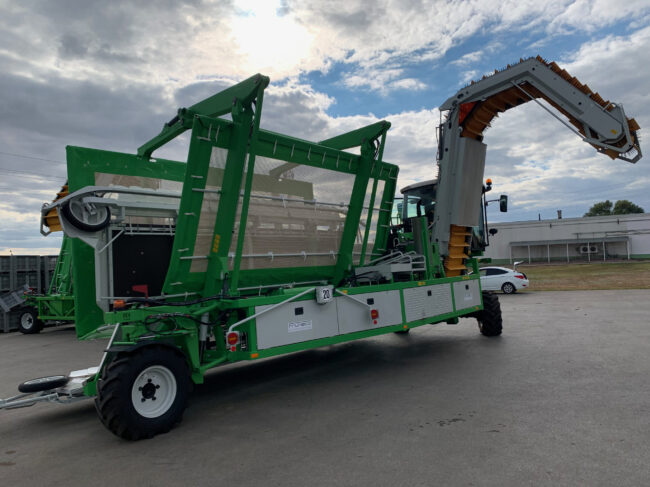

Continuously operating harvester OE4 Model OE4
This harvester is based on a principle of single system.

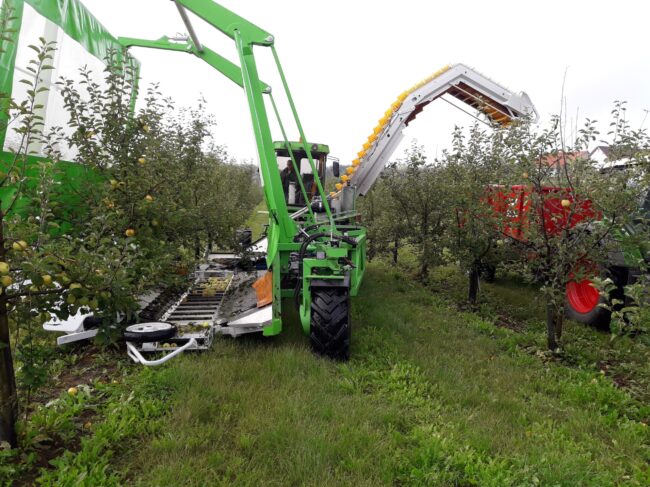

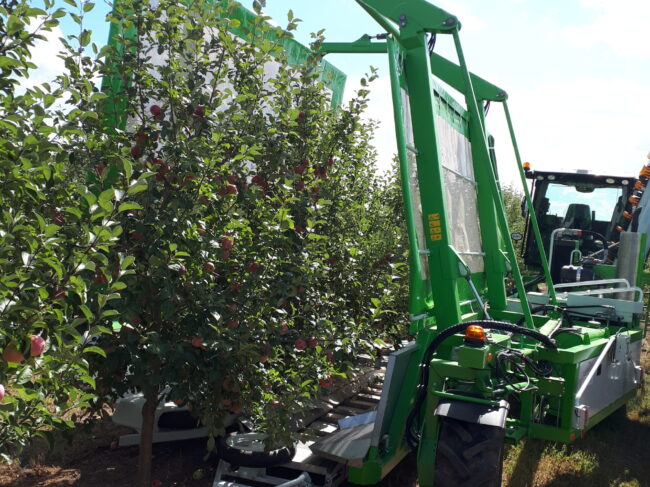

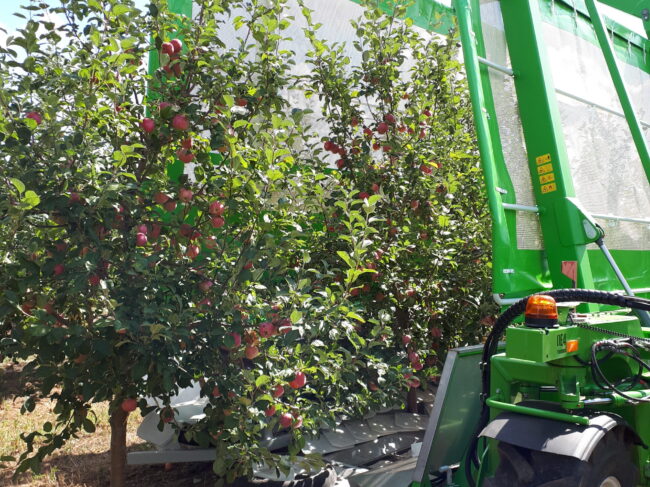

The vibration and collection function is combined in one side machine next to the tree. In this type of machine a method of continuous harvest is used, i.e., trees are harvested continuously without pauses. For this purpose, the machine is equipped with a shaker which operates continuously.

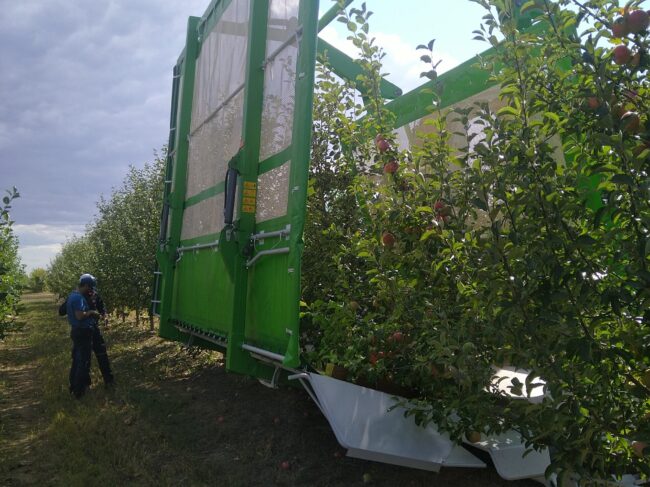

A special electro-hydraulic mechanism controls the process. Thus, after this operation, fruits do not fall to the ground, as an umbrella over the lines of trees will help with the process.

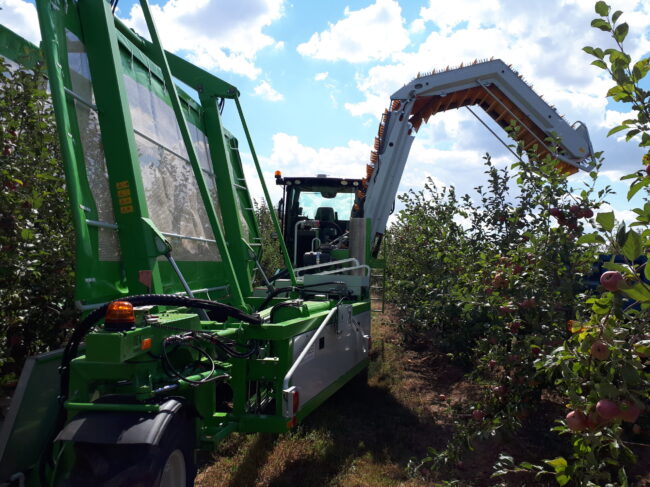

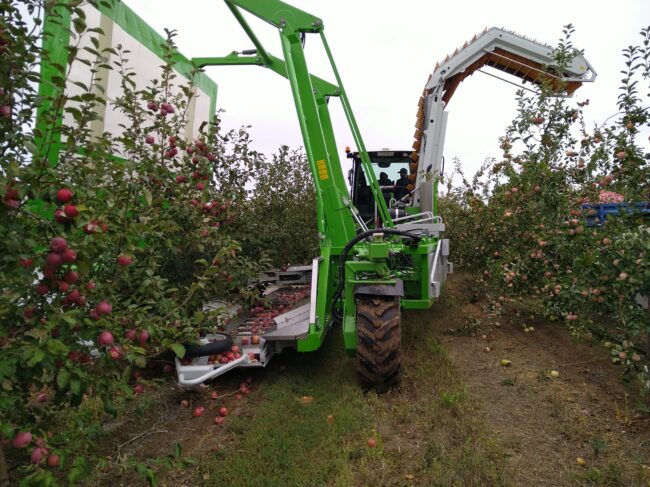

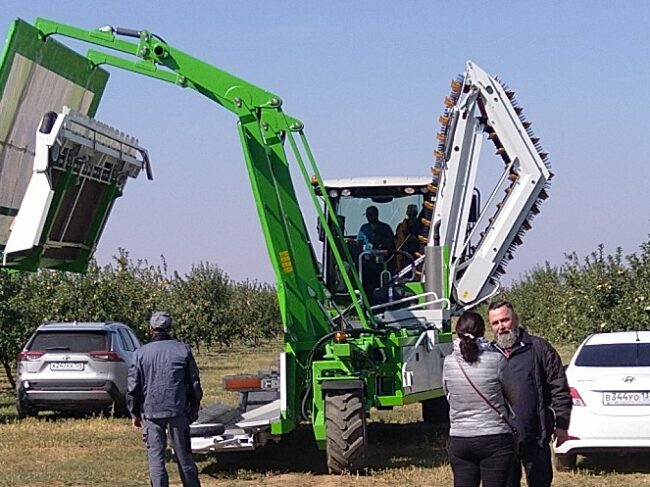

From the side of the machine and from umbrella, fruits are obtained through a special sealing built on a central conveyor belt.
This is designed such that, despite the density function, is still providing a continuous harvest operation.

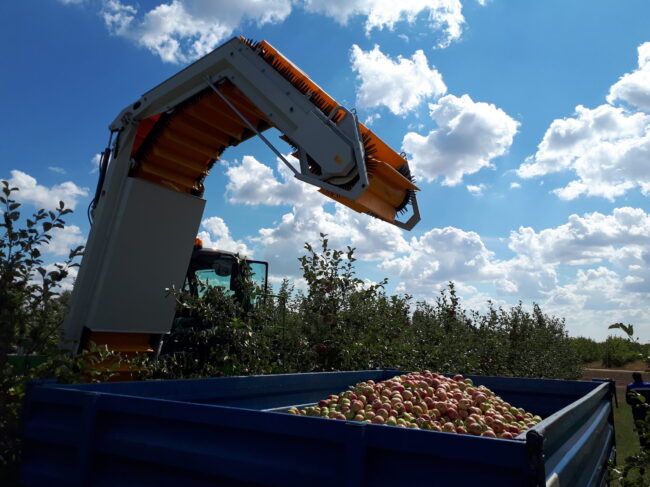

On the downstream conveyor, the elevator and the purification phase, fruits will be transported to an adjacent row powered container.

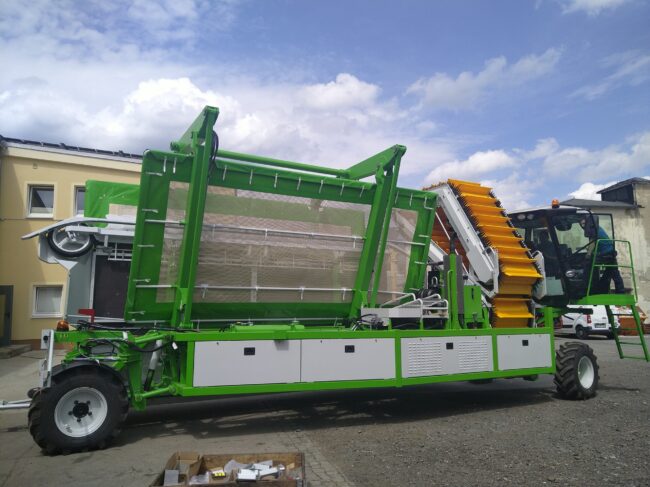

The harvester has a chassis with high and controlled lateral suspension level, in such a way that it is able to adapt to more difficult areas.
The operator can perform and supervise from cabin all machine functions.
All work processes of the machine are performed electro-hydraulically.
Modification of the collection during transport will also be electro-hydraulic and will only take about 2 minutes.
The harvester is authorized for road use.
TECHNICAL INFORMATION: www.frumaco.de Machine System:
Single Motor and machine system Self-propelled harvester Vehicle in parallel for the harvesting of the crops
Requirements fort he plantations
Layout orchard:
Row spacing from trunk to trunk > 5.0 m
Tree distance from trunk to trunk > 1.8 m
Trunk diameter 80 ….. 200 mm
Free and clean trunk height > 0.75 m
Tree height <4.5 m
Crown width <3.2 m
Technical data

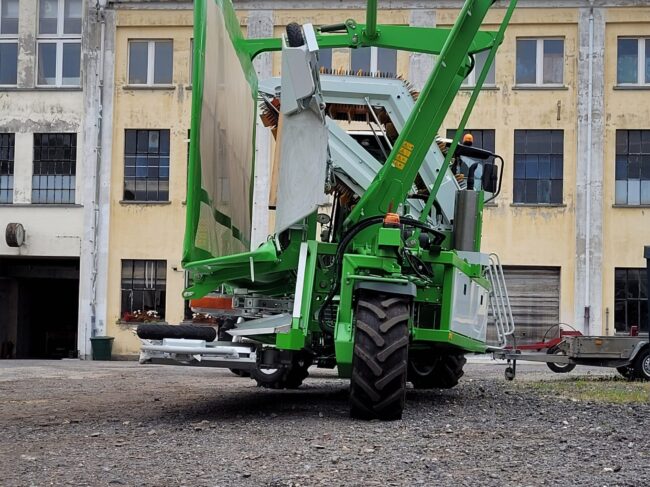

| Engine | Deutz 4 cyl |
| Type | Diesel 55 Kw/ 75 hp |
| Harvest method | Continuously working shaker in a “Shake and Catch” process |
| Machine system | Single machine system Self-propelled fruit harvester 3 wheel landing gear 3 wheel drive 3 wheel steering |
| Chassis | 3 wheel chassis All-wheel drive – hydrostatic Differential lock in the rear axle all-wheel steering height-adjustable chassis hillside / slope compensation up to 12% |
| Hillside Limits | Harvest climb and fall over line 15% Contour line 12% Transport climb and fall over line 20% Contour line 15% |
| Hydraulic Drive | hydrostatic drive 2 gear orchard speed drive Street speed drive |
| Diesel tank capacity | 200 lt |

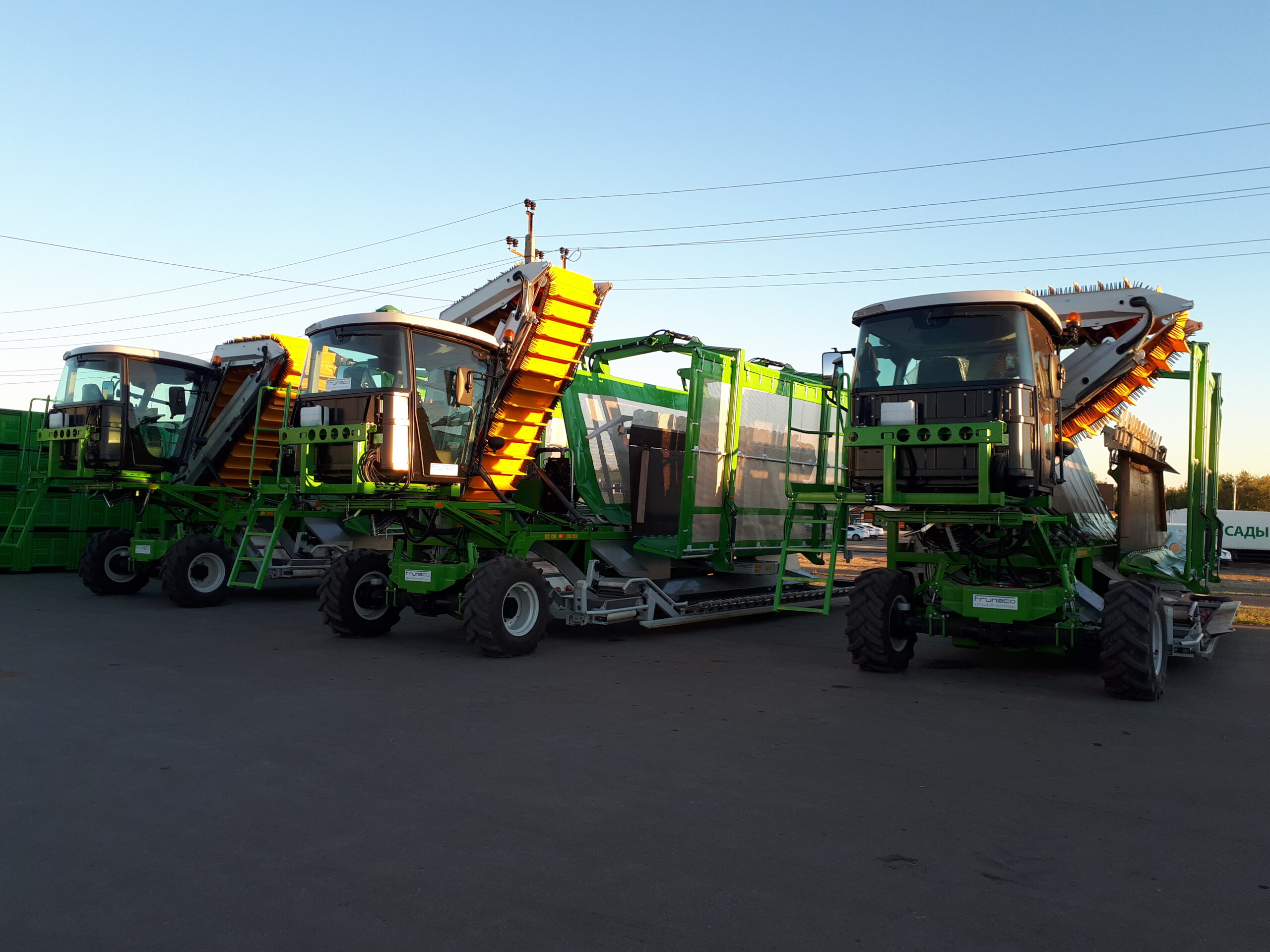

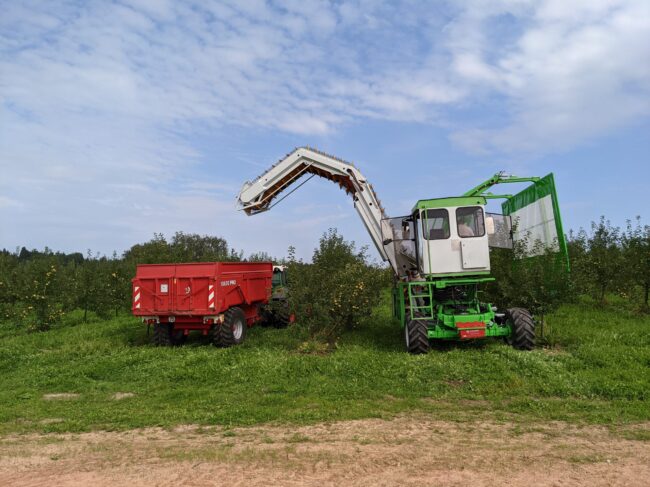

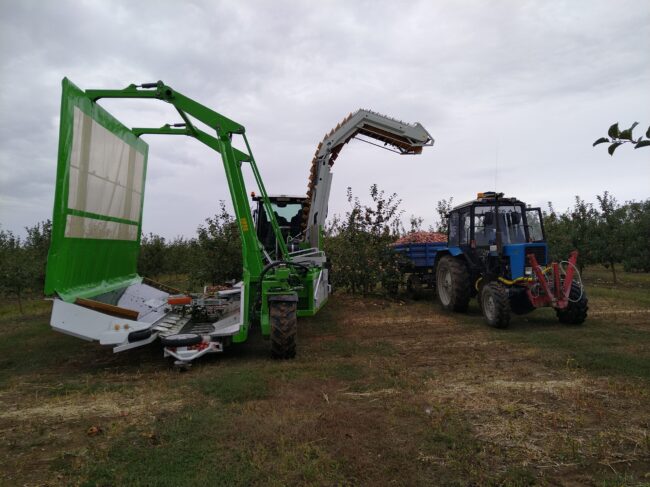

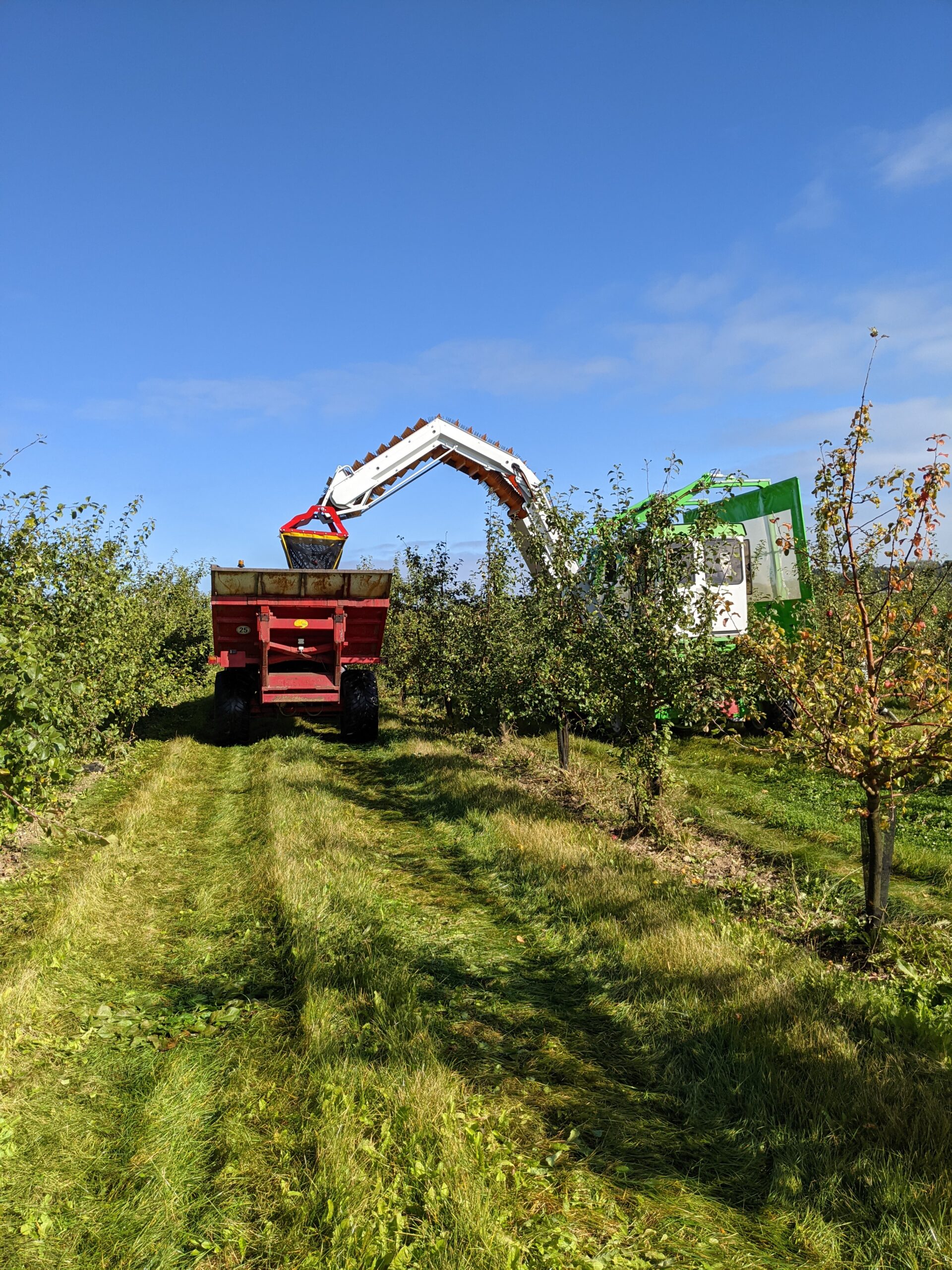

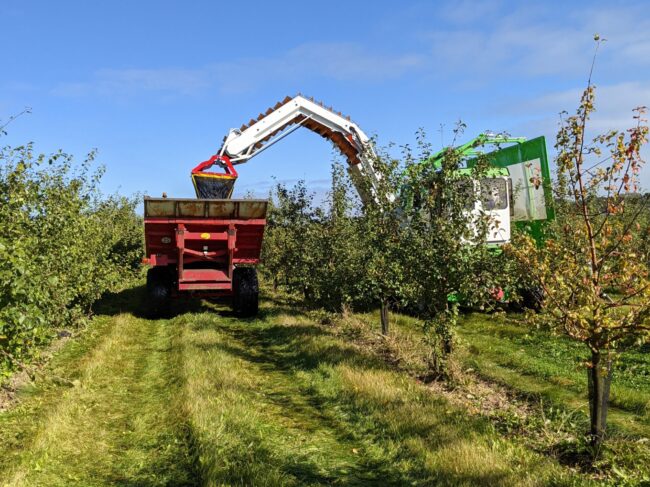

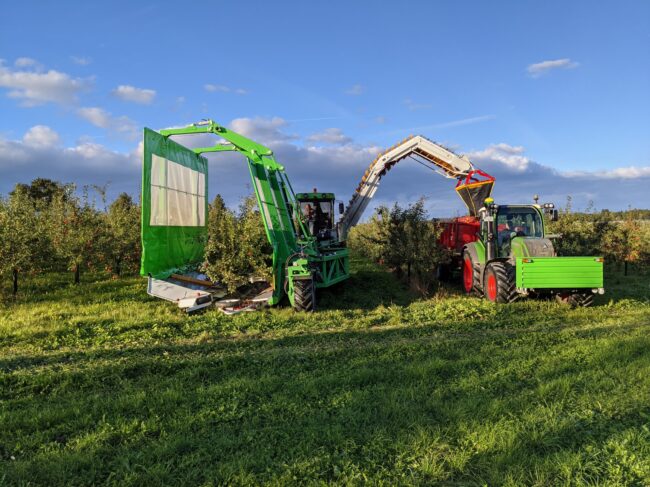

| Removal of goods | Transfer the crop from the conveyor system of the harvester to a parallel driving container vehicle in the adjacent row |
| Harvesting capacity | Up to 6 trees / min in the working process under perfect conditions |
| Operation | One-man operated |
| On-board voltage | 12 volt |
| Control | from the driver’s seat of the machine Electro-hydraulic control Systems Automatic vibrator control for continuous harvesting process |
| Fruit | apples sour cherries plums |
| Conveyor capacity | Up to 25 t/h (apples) |
| Cleaning of the goods | Separation of the crop from leaf and wood parts as pre-Cleaning |

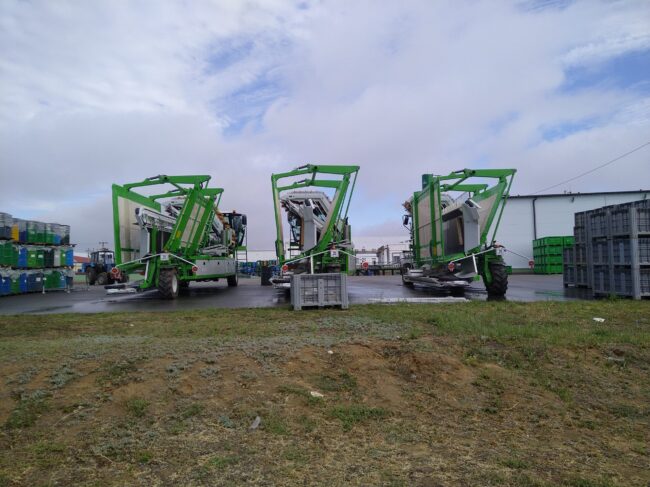

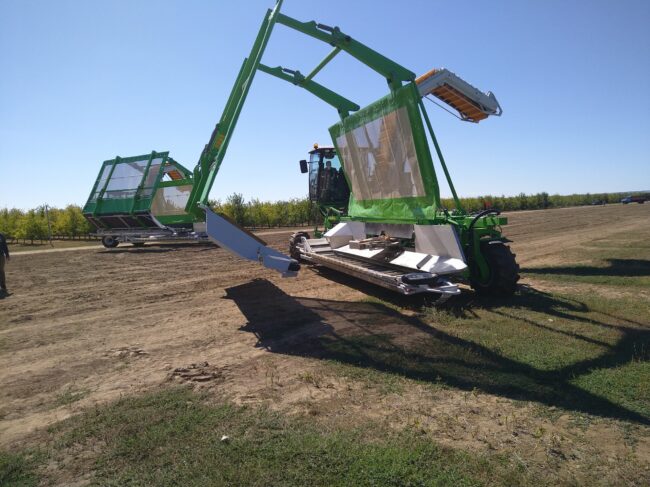

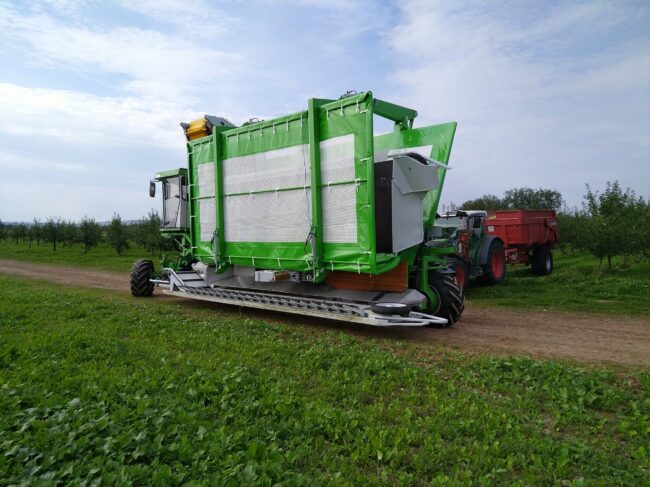

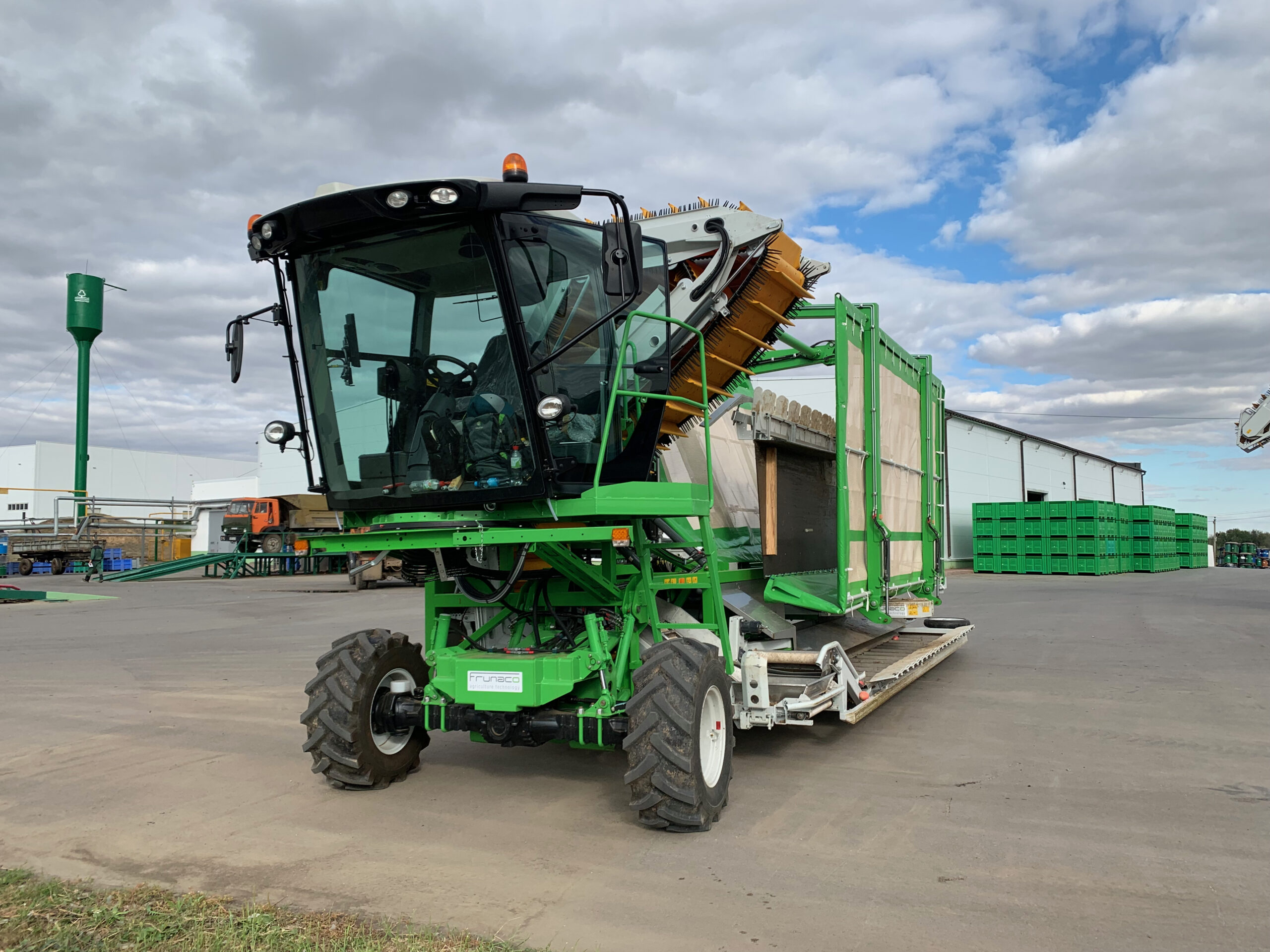

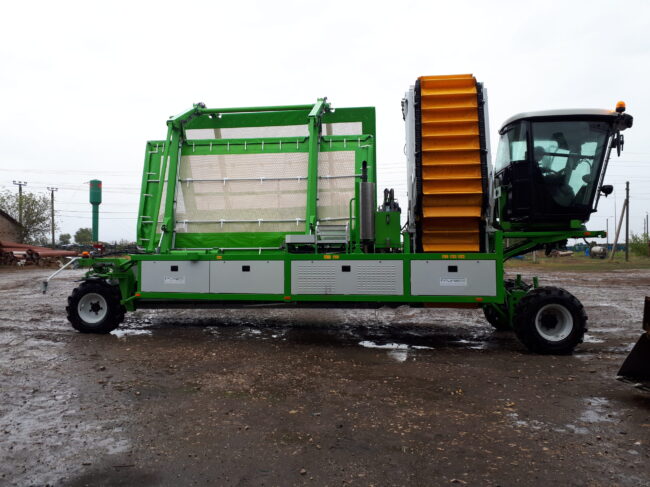

| Road transport | Suitable for road transport – street legal 4m-version only Road transport suitable – DEKRA tested Approval as a working machine up to 20 km / h without license plate Transport direction opposite to the harvesting direction, the cabin is rotated by 180 ° |
| driving speed | forward 0 – 10 km / h stepless – field trip 0 – 20 km / h stepless – road trip backwards 0 – 6 km / h stepless |
| length | Transport position 9.700 mm working position 9.700 mm |
| width | Transport position 3.000 mm working position 10.200 mm |
| Height (4,5m variant) | Transport position 4.000 mm working position 4.500 mm |
| Mass | Depending on the equipment about 6 tons |
