Harvester machine OB 100 A (Ride-on)
With these harvesting machine, a significant increase in productivity can be achieved in the short juice fruit harvesting season, while at the same time increasing profitability.
Fruit picking machine or fruit collecting machine OB 100 A (Ride-on)
Fruit picking machine or fruit collecting machine OB 100 A (all-wheel drive)

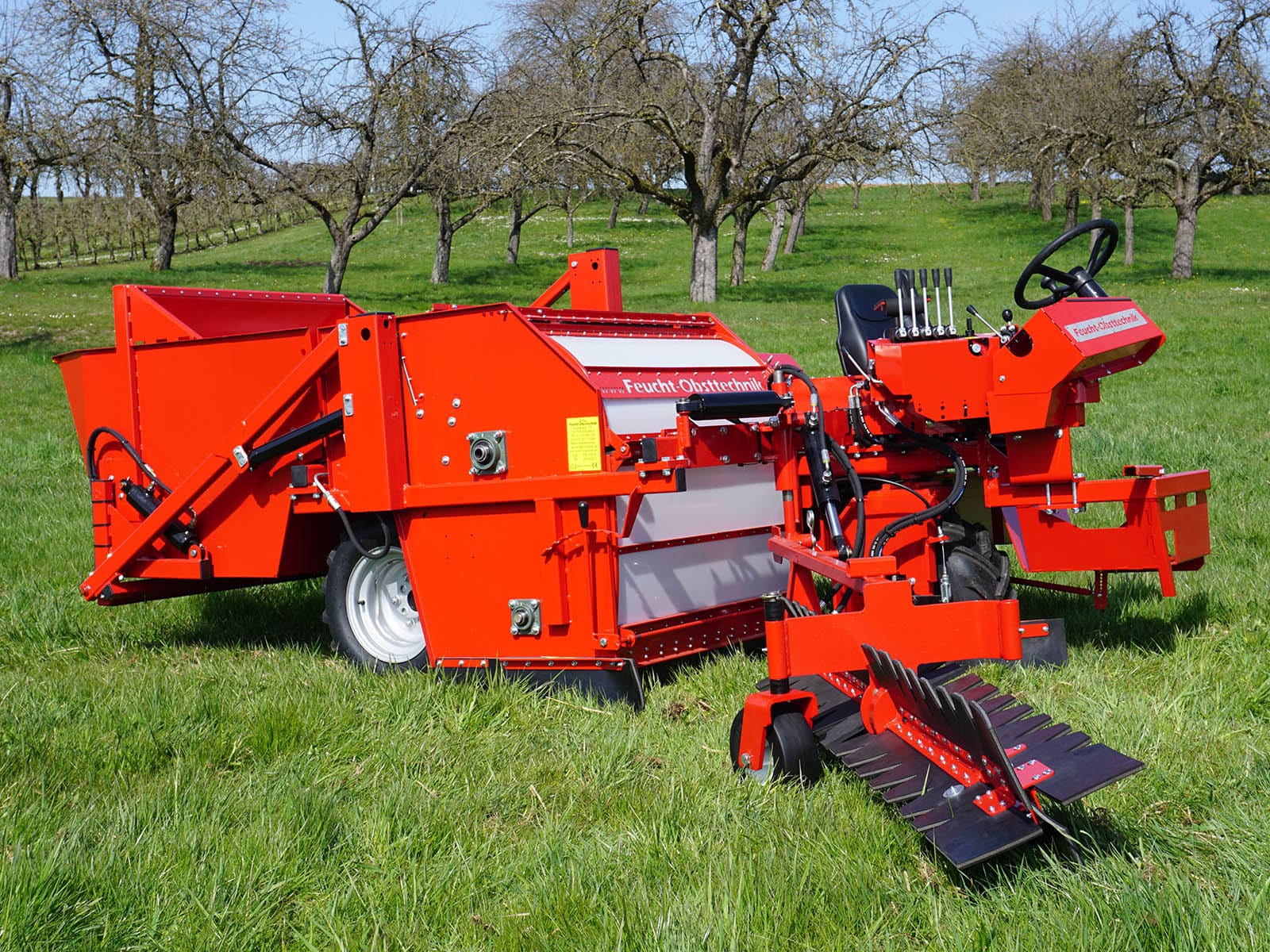

The OB 100 A is a self-driving riding picking machine for contractors or agricultural machinery cooperatives.

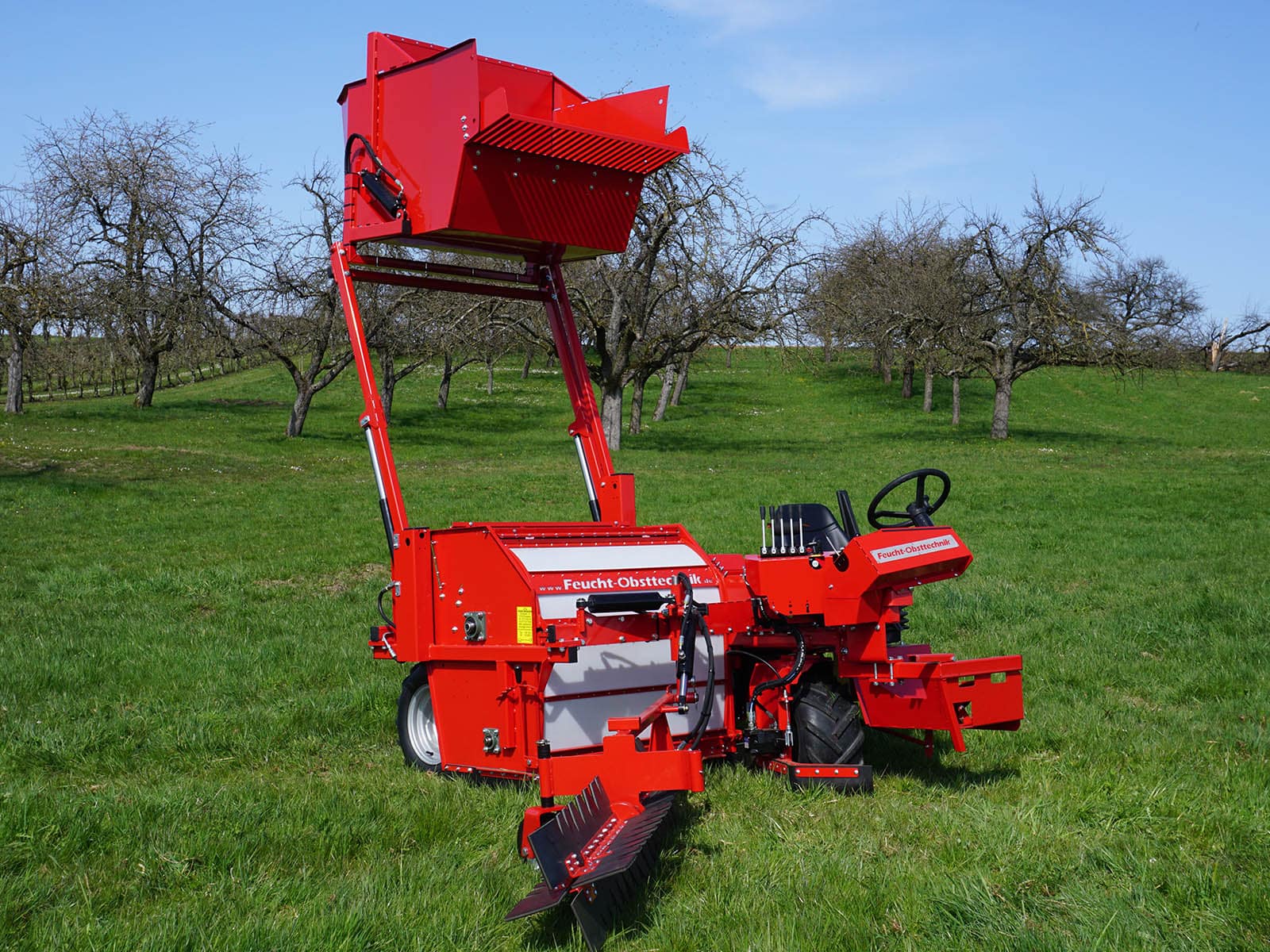

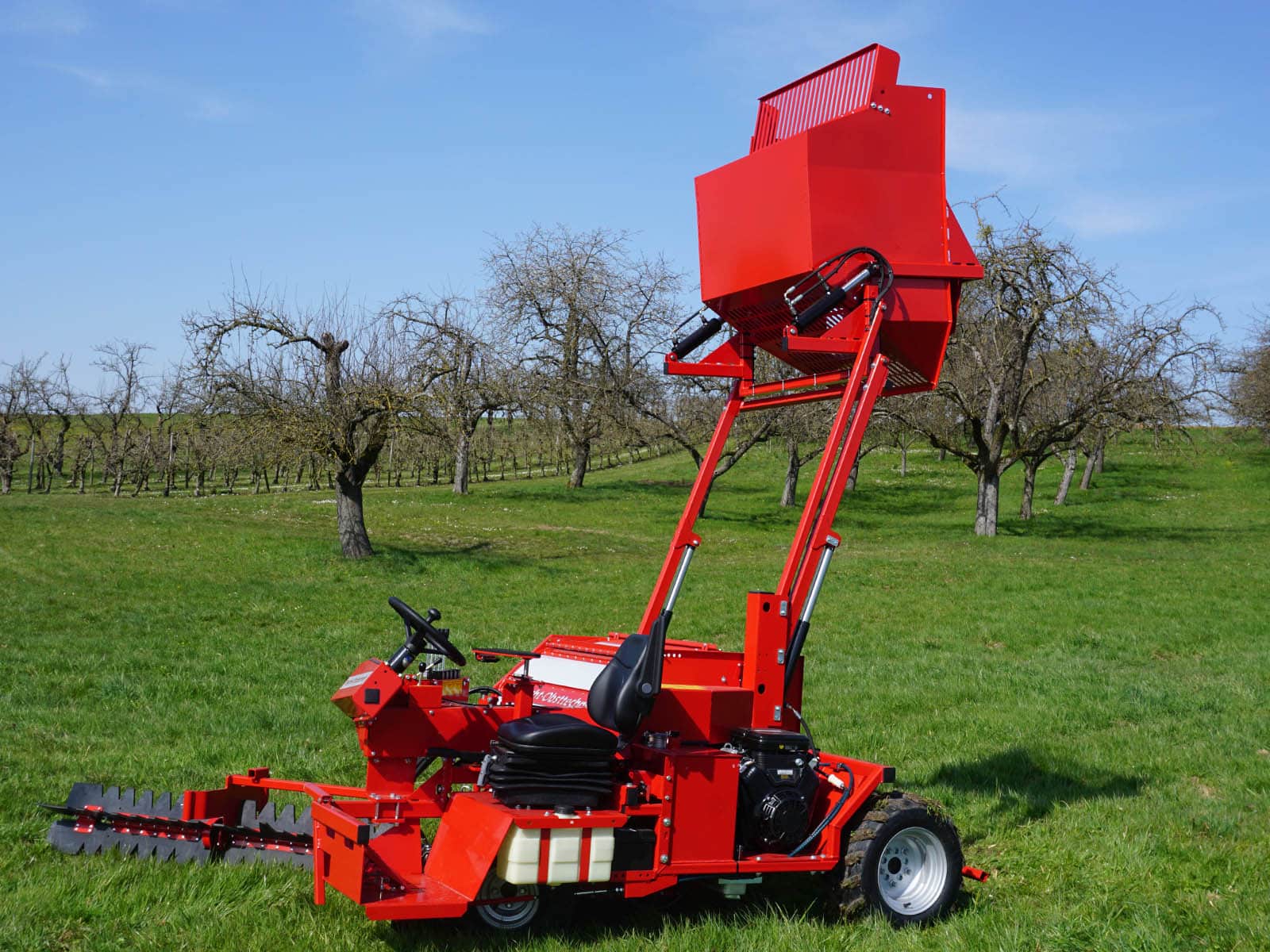

A device with 23 PS and 100 cm work width (with additional plantation rotor correspondingly more). It is equipped with a 700 l bunker, the overloading height of which is 2.50 m. This machine is always equipped with all-wheel drive. The hydraulic radial piston motors provide very good drive power in sloping positions.
This fruit picking machine or fruit collecting machine can easily harvest 1,000 to 2,000 t of juice fruit making it suitable for the real professional. Due to the large tyres, OB 100 A achieves good lateral stability on slopes.
OB 100 A
Perfectly adapted to your own needs with optional accessories.
For contractors or agricultural machinery cooperatives, we offer this self-driving ride-on fruit picking machine / fruit collecting machine OB 100 A with all-wheel drive and 100 cm work width. The OB 100 A can be equipped with a number of accessories.
Benefits
- three-wheel drive for fruit intake even on extreme slopes
- maximal traction is achieved thanks to the optionally available differential lock
- very agile and transparent, thanks to a short, compact construction
- fully hydraulic mini steering with the lowest force need
- can be used in plantations and orchards with the utility model protected plantation rotor with optimum ground hugging and serrated rotor. This means a picking rate or collection rate of more than 99% is achieved
- the plantation rotor can be swivelled hydraulically to the right and the left
- the speed of the plantation rotor is infinitely variable
- the plantation rotor is height adjustable via a sliding skid and adapts exactly to the ground conditions
- 100% cleaning of the fruit from grass and leaves
- ergonomic sitting position due to inclined and suspended seat with 100% view of the picking unit and fruit bunker
- infinitely variable adjustment of the operating elements
- maintenance-free electromagnetic coupling for the receiving unit
- steel parts are phosphated and plastic-coated. compared with conventional coatings, a much higher mechanical stability and UV resistance is achieved
- central adjustment of the harvesting cover for large and small fruit
- drive pedals for forward and backward drive with direction display
- 100% filling of the fruit bunker
- powerful, particularly quiet motor (30% capacity)
- optimal grass length: 15 – 25 cm
- our machines achieve the highest picking rates / collection rates (almost 100%) without damaging the fruit through the gentlest possible picking of the rubber lips. It does not matter whether there is a lot or little fruit. during the picking or collection process, the fruit is cleaned of grass and leaves 100 % and is cleaned as if by hand
- can also be used in high ground moisture conditions due to its low weight and wide off-road tyres.
Technical data
|
Work width:
|
100 cm |
|
Work width with rotor:
|
1 Rotor: 235 cm to 280 cm
2 rotors: 380 cm to 465 cm |
|
Motor:
|
23 PS Briggs & Stratton V-twin 2-cylinder petrol motor with electrical starter, electrical ignition, oil filter and alternator
|
|
Drive:
|
Hydrostatic drive with 3 wheel motors and differential, infinitely variable driving speed 0 – 17 km/h (forward and reverse)
|
|
Fruit bunker volumes:
|
700 l |
|
Drive:
|
Belt drive fruit intake with electromagnetic coupling and infinitely variable speed adjustment of the intake roller
|
|
Unloading height:
|
250 cm |
|
Overload depth:
|
90 cm (distance from machine to outer edge of bunker)
|
|
Length:
|
420 cm |
|
Width:
|
175 cm |
|
Height:
|
141 cm |
|
Picking performance:
|
Up to 8 tonnes per hour depending on the amount of fruit deposits
|
|
Weight:
|
800 kg |
|
Types of fruit:
|
Apples, pears, walnuts, hazelnuts, citrus fruits, etc.
|
|
Tyres:
|
Rear: 23 x 10.50-12, Front: 20 x 10.00-8
|
| Optional: |
Operational hours counter for drive unit
|
|
Infinitely variable hydraulic driven plantation rotor
|
|
|
Plantation rotor right
|
|
|
Plantation rotor left
|
|
|
Diesel motor
|
|
|
Big bag holder
|
|
|
Work illumination
|
|
|
Rotating beacon
|
|
|
Nut kit for nuts (e.g. walnuts or hazelnuts)
|
|
|
Optionally also available with a large crate trolley (2 or 5 crates)
|
Advantages
- Compact desing and big streering angle for maximum manouverability
- Can be used in plants and on fruit meadows. Plant rotor with triangle wings (registered desing) and optimized ground adjustment are reaching pickup rates higher than 99%
- 100% seperation of fruit from grass and leaves
- Easy access to fuit baskets, stored 700 mm high
- Bracket for additional fruit baskets
- The plant rotor is able to rotate with infinitely variable speed
- Metal sheets are phosphate-treated and powder-coated. This gives much better mechanical and UV stability compared to conventional paints
- The plant rotor can be exactly adjusted to the ground by skid. The system follows every ground automatically
- Drive belts are spring extensioned are maintanance free. This system can be compared to hydraulic drives but it is much cheaper
- Front wheel steering is connected to the rhs handle. Gear linkage for reduced steering froces allows young people and woman to use the machine even on inclines
- Ergonomically arranged controls, safety stop for drive train.
- Our machines are reaching highest pickup rates (nearly 100%) without damaging any fruit. It dosn´t matter if there is more or less fruit available. Fruits will be cleaned during pickup process
- Complete fruit basket capacity is utilised
- Possible grass lenght for best pickup results: 5-25 cm
- Powerful engine and low noise level (only 30% engine load)
- Tractor drawbar for transport (not for hydrostatic transxle).
- Pneumatic control replacing bowden wires (option for hydrostatic transaxle only)
Accessories
- Operating hours counter
- Continuously driven plantation rotor with flow regulation
- Differential lock (only for hydrostatic transmission for up to 45 degrees)
- Pneumatic actuation instead of Bowden cables (for hydrostatic transmission)
Technical data
| Working width: | 800mm bis 1600mm |
|---|---|
| Engine: | 6,5 HP, optional 11 HP Honda OHV gasoline single cylinder engine electrinic ignition |
| Drive train: | 5 forward speeds one reverse speed, mechanical differential or hydrostatic transaxle |
| Transmission: | belt driving pickup system, automatic belt extensioners |
| Incline capability | unrestricted |
| Pickup adjustment: | height adjustment with fixable spindle at front wheel |
| Fruit basket volume:: | 2 x 35 ltr. |
| Pickup capacity: | 2,5 or 4 tons/hour |
| Length: | 2250 mm/ 2930 mm with tractor drawbar for |
| Transport: | Width: 1520 mm Height: 980 mm |
| Weight: | 312 kg |
